1. Design speed :150m/min.
2. Effective width:1400-2500mm.
3. Length of outting cardboard:350-9999mm.Precision of cutting cardboard:+-1mm.
4. Computer system to keep order.Man-machine convrsation system NC.automatic adjust cutting speed by cardboard specification and maching.The screen display various production message.Can consult,modification,superaddition and can set order during running machine.
5. High quality servo motor,the servo drive system import from Germany...
-
1. The sturcture is double rollers with four arms;mill rolls on both arms can bear two reel paper at the same time.
2. Hydraulic control of lifting.with lowering,clamping and centering functions.
3. Web tension is controlled by pneumatic or magnetic-powder tension control;Expandable chucks is optional for not wasting paper.
4. Avaltable width:900mm-2550mm;Maximum reel paper diameter:1500mm.
5. Maximum weight:3T.
...
-
1. Max. Diameter of reel paper:1500mm.
2. Effective width:1400-1800-2000mm.
3. Reel paper lift-lower,cfamp,loosen,movement,contraposition operated by motorize.
4. Reel strain control by manual brakes of pneumatic brakes.The finial adopts tapered styie or bulge styie.
...
-
1. The equipment consists of a walking device,a guardrail device,a guide roller device,a paper receiving device and a machine frame device.
2. Inspection SPAR 140# i-beam(national standard beam 140#u-beam).Second floor beam no.100 channel steel(national standard).
3. The two sides and front sides of the turret are equipped with running platforms,guardrails and one side climbing ladder.The stripper plate is a 3MM patterned plate.
4. Angle iron 50X50 mm.Baluster tube 1.0 inch....
-
* suitable max paper roll Dia:1200-2200mm。
* with the automatic tension control of the roll paper, it can take the paper at the high speed.
* No waste peper when take the paper(overlap just 40mm)
* When the paper truck is removed, it is automatically transferred out, paper loading is easy, and
the automatic tension control paper picks up zero errors.。
*All PLC control, accurate movement, less trouble easy maintenance.
*When the buffer wheel is pulled for th...
-
1. The inspection system of chongqing dongdeng brand carbon-free brush motor is used to correct the deviation.It is durable and has good effect on rectifying the deviation.
2. The motor power is 150KW.
3. The side opposite machine consists of four layers,each with a frame,a guide roller of 124mm and a rectifying roller of 86mm.
4. The surface of various rollers are treated with precision grinding chromium plating(1.5 wire),smooth and durable.
5. The non-carbon brush st...
-

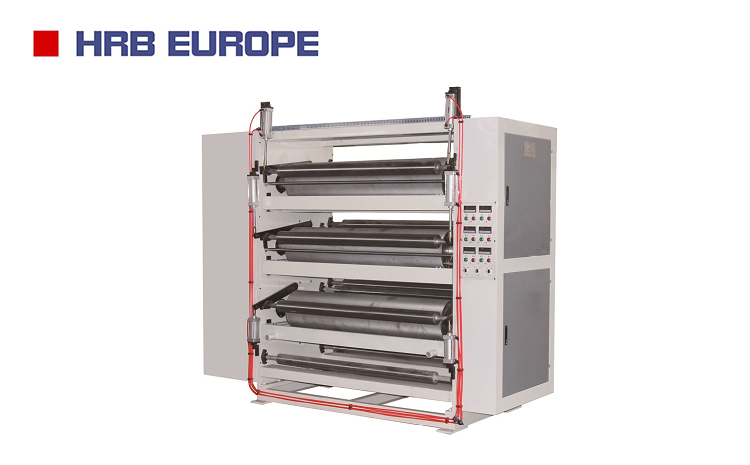

1. The machine can use electric/steam/oil heating,increase the smoothness of paper,adhesive solid.
2. Four online by 500-900 of the diameter of the rod and the frame,the paper guide roller,spacing device,trans-mission device and so on.
3. The paper guide roller diameter and hard chromium plating.
4. Hot roll surface temperature uniformity.To the base paper moisture before entering the glue machine are basically identical.
...
-
1. Design speed:250m/min,on the rubber roller diameter of 215mm/320mm.
2. Special line on the surface of the glue applicator roller,surface ane hard chrome palting,even glue supply,low cost.
3. The glue applicator drived by frequency conversion motor with inverter.Keep the synchronization for glue applicator roller and double baker facer machine by inverter.And independent running.
4. Adjustment for gap between glue roller and doctor roller by electric or manual are optional...
-
1. Frame adopts 250#(gb) channel steel,running stability.
2. There are so many choices heating mode,can use electric heating,heat conduc-tion oil heating,steam heating mode.
3. The heating method is electric heating of quartz tube.Two 3KW rollers in each set are pressurized by air.The diameter of the heating shaft is 240mm.
4. 1.5mm cold plate air box double deck design,intermediate rock wool insulation board.
5. Cooling section for multiple groups leading paper axis,p...
-
Characteristics of the equipment
1. The dyeing machine is equipped with two sets of equipment,a set of drying equipment.Rubber roller diameter is 205mm.Hang plastic material for polyurethane,polyurethane coating ink is the feature of uniform,wear-resisting.Anilox roller diameter is 175mm.The anilox roll surface conditioning,inner hole machining,do dynamic balance on the surface of fine grinding,and engraved with pit type checker.
2. Ink on dyeing machine for pneumatic diaphragm pu...
-
1. The unit for rubber roller,belt transmission device,the feed shaft,frame,etc.
2. Sheets of paper together after the machine is glue device,the pressure can be adjusted according to the varieties of paper and related conditions.
3. Feed roller is 124mm and. Shaft can be adjusted up and down,the shaft body is engraved with a spiral groove,the board into the compaction without any deformation.
4. Rubber roller 0.5mm high design from top to bottom rubber roller diameter of 50...
-
1. The machine up and down by rubber roller,pneumatic pressure,on-site operation.Gear rack,etc.
2. The last line of the machine is heating board after cooling compaction device,the pressure can be adjusted according to the quality of the paper and relevant conditions.
3. Rubber roller diameter is 500mm,up and down roller body of wall thickness of 30mm,can prevent the compression deformation of the roller body.Hang glue unilateral 15mm thickness hardness is 75-80,hanging plastic ma...
